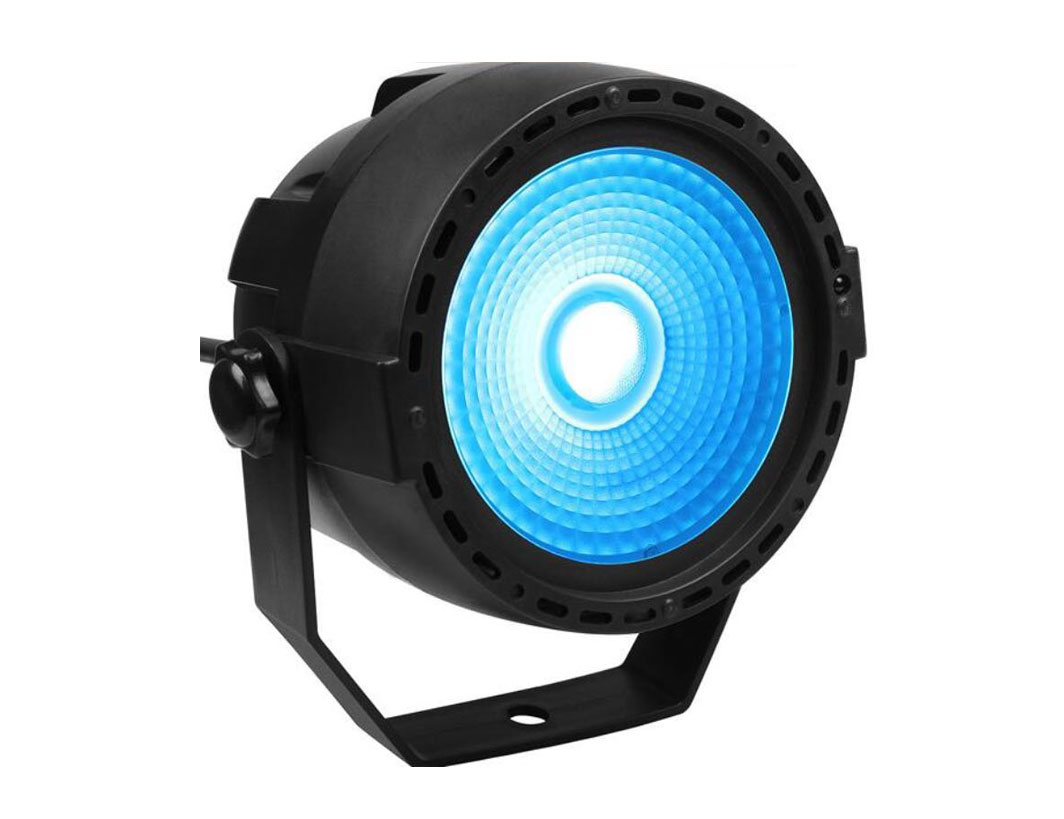

Led PAR light COB1
User Manual
Specification:
Voltage：AC90-240V 50-60Hz
Power：25W
Light source：1 piece *20W COB lamps
Control mode：Automatic,Voice control,DMX512,Remote control
Channel：6CH
| DMX channel instruction: |
| 1 |
0~255 |
Main Dimming |
| 2 |
0~255 |
R Dimming |
| 3 |
0~255 |
G Dimming |
| 4 |
0~255 |
B Dimming |
| 5 |
1~9 |
Not flashing |
| 10~255 |
The larger the ＆#118alue, the slower the strobe speed |
| 6 |
0~50 |
Manual mode, the first 5 channels are valid |
| 51~100 |
Jump change, same as ’FF**’ mode, 5th channel speed control |
| 101~150 |
Gradient, same as ’CC**’ mode, 5th channel speed control |
| 151~200 |
Pulse change, same as ’EE**’ mode, the fifth channel speed control |
| 251~255 |
Voice control mode with ’Soud’ mode |
| Button instruction: |
| Mode |
Sub Menu |
Function |
| A001~A511 |
A001~A511 |
DMX mode, Jump flash: DMX connected to the information
display SLAV: master signal has been received
|
| Au** |
Au 1~Au7 |
Fixed color, 1-31 represents the color mixture of 5 colors of LED respectively.
Specific combinations as below. |
| FF** |
FF 1~FF99 |
Jump change, the greater the two digits, the faster the color changes |
| CC** |
CC 1~CC99 |
Gradient, the larger the last two digits, the faster the color changes |
| EE** |
EE 1~EE99 |
Pulse change, the greater the last two digits, the faster the color changes |
| F*** |
F001~F009 |
Not flashing |
| F010~F255 |
The higher the last three digits, the slower the strobe speed |
| AuTo |
AuTo |
Automatic mode,Loop playback:FF**、CC**、EE**、F*** |
| Soud |
Soud |
Voice control mode 1 |
| bLOF/bLON |
Press ENTER, "BL" flashes, "OF" means no voice control, no light, "ON" no voice black |
| VOL1~VOL9 |
Press ENTER, "VOL" flashes, the number "1~9" stands for voice sensitivity. The higher the ＆#118alue, the higher the sensitivity. |
| AU** mode color list ("1"represent light) |
| COLOR/NO |
1 |
2 |
3 |
4 |
5 |
6 |
|
7 |
| R |
1 |
|
|
1 |
|
1 |
|
1 |
| G |
|
1 |
|
1 |
1 |
|
|
1 |
| B |
|
|
1 |
|
1 |
1 |
|
1 |
|
