Technical parameters:

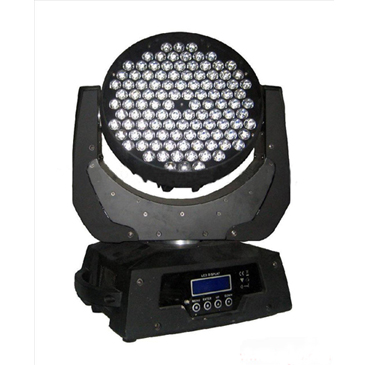

Type: MD- 005

Input voltage: AC110-260 v 50/60 hz

Rated power: 140 w / 350 w

Light source specification: power 1 w / 3 w

Light bead number: 108 a (24 r + and g + 28 b + 28 w)

Service life: 50000 hours

Control channel: 14 DMX channel

Colour: RGBW linear mixed color

Color temperature: 0-100% linear adjustment

Dimming: 0-100% linear adjustment

Stroboscopic: 1 ~ 25 times/SEC

Rotation Angle: horizontal direction 540 ° / 630 °, 270 ° vertical direction;

With automatic aligning function

Beam Angle: the factory default 15 °, the optional.

Control mode: international standard DMX512 signal, master-slave synchronous control mode,

Single mode. Self-checking mode

Other functions: horizontal, vertical speed adjustable

LCD liquid crystal screen brightness and contrast adjustable

Protection level: high temperature resistant engineering plastics + die-casting aluminum, IP20

The environment temperature: - 20 ° ~ 40 °

Heavy quantity: 11 kg
