Technical parameters:

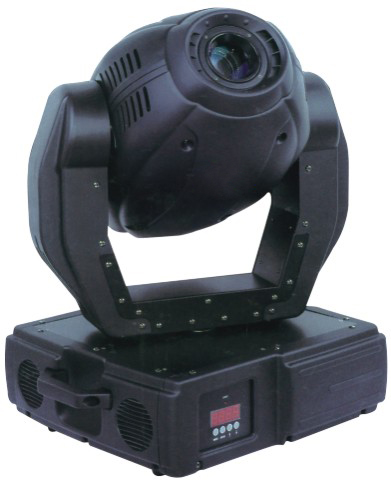

Type: MDB - 005

Voltage: AC220V / 50 Hz

Power consumption: 750 w

Insurance: 5 a

Source: HMI575W

Control signal: DMX512

Channel: 16 ch

Carton packing size: L420 × W420 × H570 (mm)

Gross weight: 33 kg

Functions:

Open/GuanGuang/stroboscopic: double vane mechanical linear dimming per second, 1-10 times can be variable frequency flash

Color piece of plate: seven color + white/take rainbow effect

Pattern plate: 7 diagram + white/reversible variable rotation

Prism effect: reversible variable rotation

Design definition to adjust: electronic automatic adjustment of focus, distance resolution automatic adjustment

Horizontal rotating maximum Angle (X axis) : 540 degrees

Vertical rotating maximum Angle (Y) : 270 degrees

Horizontal and vertical rotation speed can be adjusted

Horizontal and vertical rotational position precision adjustment

Safety: the machine equipped with thermal protection, trigger high pressure protection, safe and reliable.
